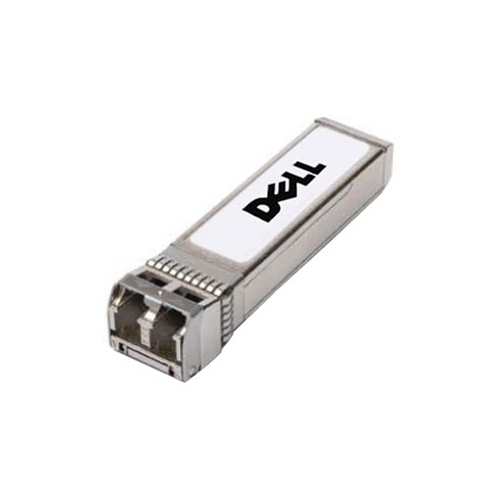

The Dell™ SFP+ transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking 10GbE SR/SX SFP+ transceiver provides 10GbE connectivity.
Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
Device Type: SFP+ transceiver module
Form Factor: Plug-in module
Cabling Type: 10GBase-SR
Data Link Protocol: 10 GigE, 10Gb Fibre Channel
Max Transfer Distance: 500 m
Compliant Standards: IEEE 802.3
EMC PowerEdge R440, R540, R740, R740xd
PowerEdge R220, R230, R320, R415, R420, R420xr, R430, R510, R515, R520, R530, R610, R620, R630, R710, R715, R720, R720xd, R730, R730xd, R810, R815, R820, R910, R920, R930, T130, T330, T430, T630, T710, VRTX
PowerVault NX3200, NX400
