Key Features

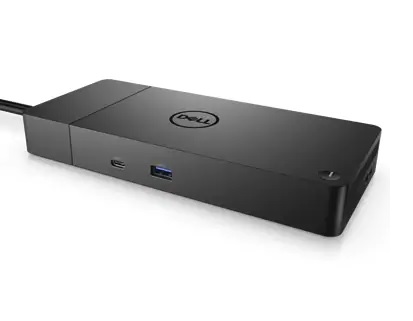

Product Type: Docking Station
Docking Interface: Separable Dual DisplayPort over USB-C
Dimensions (WxDxH): 205mm x 90mm x 29mm
Color: Black
Power: Power Adapter 240 Watt AC with 210 Watt power delivery, 90 Watt power delivery to non-Dell systems
Manufacturer Warranty: 3 Year Advanced Exchange Base Warranty, Additional 4 & 5 year warranty options
Security slot: 1x Kensington lock slot (cable lock sold separately) + 1x Noble Wedge lock slot (cable lock sold separately)
OS Required: Microsoft Windows 10, Ubuntu 18.04, Redhat Enterprise Linux
Power your day
Dell ExpressCharge allows you to charge up to 80% in one hour, making it the most efficient way to manage the workday.
Adaptable to your workload
Conveniently choose between a single USB-C cable or dual USB-C functionality, a feature compatible with our Precision 7000 workstations. Plus, with magnetically separable USB-C cables, it is easy to get the flexibility you need.
Unmatched charging
Triple your power delivery and charge even faster with a dock that delivers up to 210W of power with dual USB-C connectors.
Mix and match

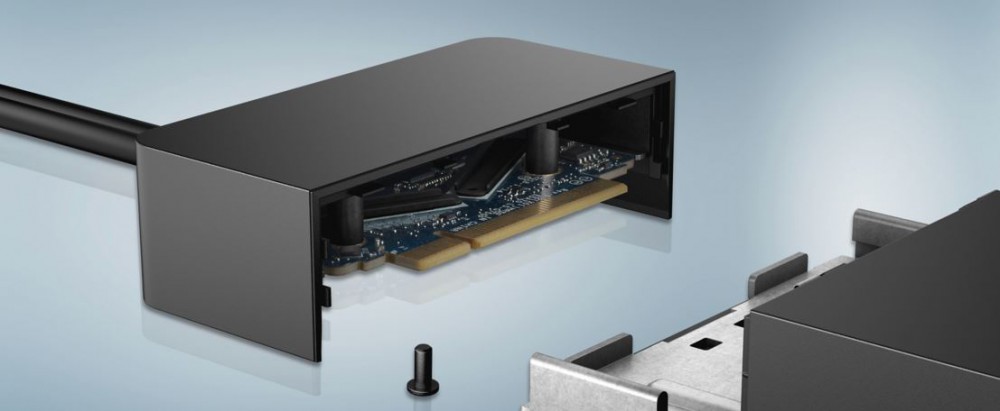

Evolve as your needs change with our most powerful and reliable dock. The future-ready design lets you swap out modules with ease if you need to do field replacements or upgrade your systems.
Ultimate connectivity

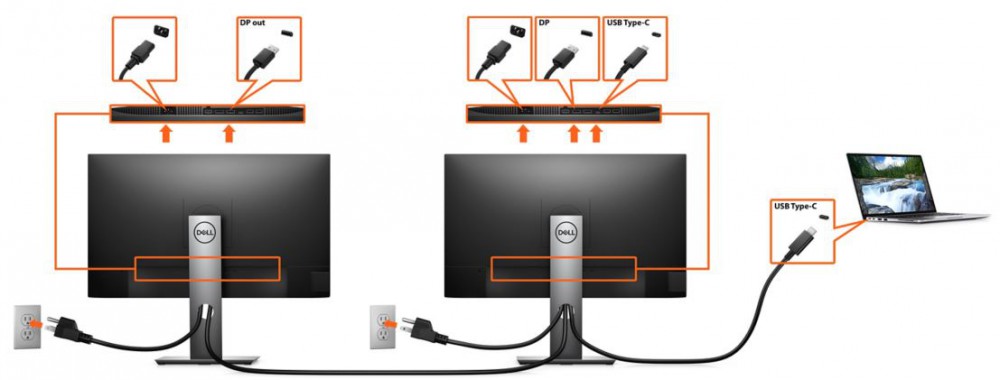

Dual USB-C connectivity makes it easier than ever to deliver power, data, audio and video as well as connect to system peripherals, no matter what system you use. Plus, with support for up to four displays, including a single 5K and dual 4K monitors, you can connect to everything you need.

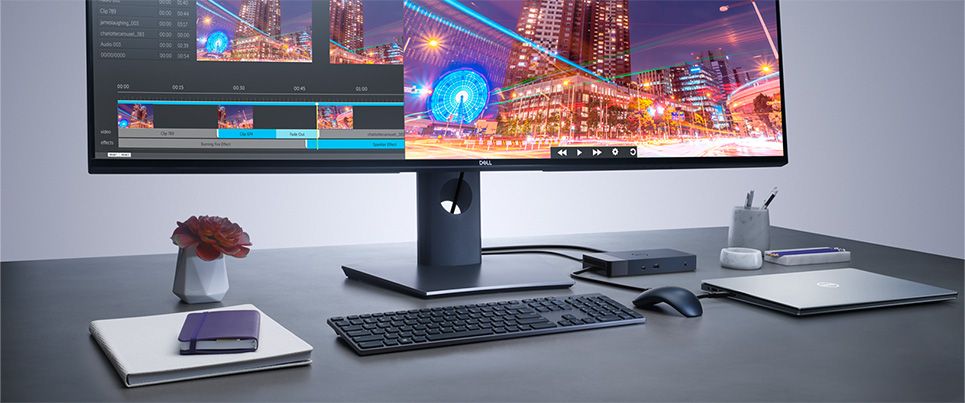

Clean and clutter-free

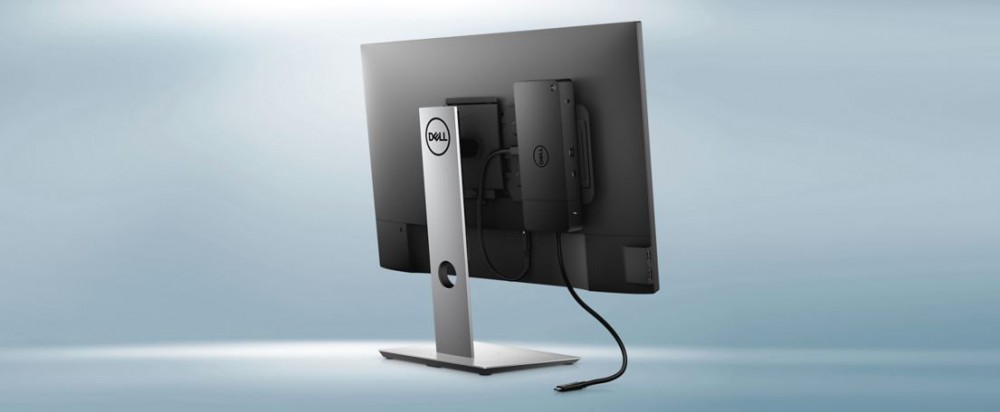

Stay productive by mounting your dock behind your monitor or under your desk with the optional, secure VESA Mount, that offers the complete flexibility with the built-in 0.8 meter cable.
Information in a flash
With data transfer speeds of up to 10Gbps, you can stay productive when connected to all your devices.
Smooth and seamless
Work without disruptions utilizing a single firmware on our most manageable docks ever. Plus, with Dell Client Command Suite and Microsoft System Center Configuration Manager, you can quickly and easily update your firmware without rebooting your dock.
Secure manageability
Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN and more, it’s easier than ever to stay productive while managing your dock.

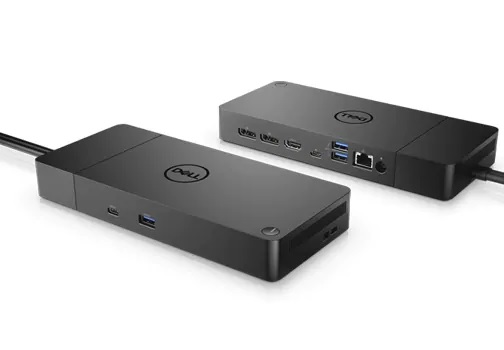

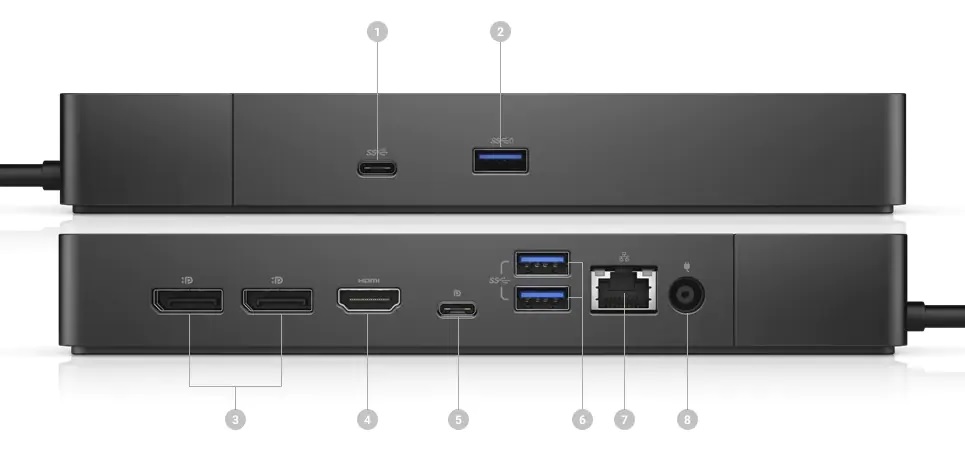

Ports & Slots
1x USB-C 3.1 Gen 2
1x USB-A 3.1 Gen 1 with PowerShare
2x DisplayPort 1.4
1x HDMI 2.0b
1x USB-C Multifunction DisplayPort
2x Dual USB-A 3.1 Gen 1
1x Gigabit Ethernet RJ45
1x Power In
Advanced Exchange Service
Your dock comes with a 3-year Advanced Exchange Service so that if a replacement becomes necessary, it will be shipped to you the next business day during your 3-year Limited Hardware Warranty.
Compatibility
Precision 5750
Precision 5760
Precision 5770
Precision 7540
Precision 7550
Precision 7560
Precision 7670
Precision 7740
Precision 7750
Precision 7760
Precision 7770
